An exhaustive technical manual and strategic procurement analysis for industrial project managers, power utility engineers, and global EPC contractors. Engineered by Chetan Electric Pvt. Ltd. to stabilize volatile grid supplies up to 5000 KVA 33kV under strict IS 2026, IS 1180, and IEC standards.
In high-demand industrial processing, continuous manufacturing, and utility distribution networks, grid voltage fluctuations present a catastrophic threat to sensitive equipment. Voltage sags, surges, and steady-state imbalances can cause motor overheating, drive tripping, relay failures, and multi-million-dollar production downtime. An Automatic Voltage Relay Transformer (AVR Transformer) serves as the critical defense system by dynamically regulating output voltage under load without disrupting power delivery.

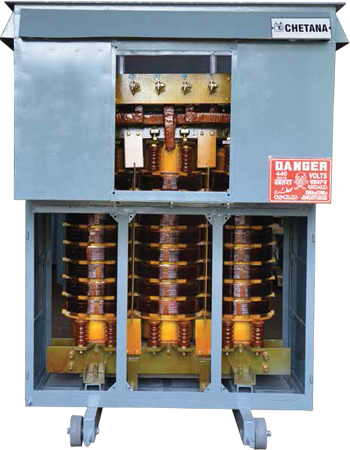

Unlike basic manual off-circuit tap changing transformers, an Automatic Voltage Relay Transformer couples a high-precision digital or microprocessor-based Voltage Regulating Relay (AVR) with a robust On-Load Tap Changer (OLTC) mechanism. The relay continuously samples the secondary terminal voltage, compares it against a pre-calibrated reference setpoint, and commands the motorized tapchanger to adjust transformer winding ratios in real-time. This ensures that downstream equipment operates consistently within exact voltage tolerances (typically ±1% to ±2.5%), regardless of upstream grid volatility.
Monitors RMS voltage, line-drop impedance compensation (LDC), overvoltage/undervoltage limits, and time-delay parameters to prevent unnecessary hunting during transient spikes.
Operates under full load conditions using vacuum or oil-immersed diverter switches with transition resistors to guarantee arc quenching and continuous electrical continuity.
Provides SCADA and PLC interfacing via Modbus/IEC 61850 protocols, allowing central control room operators to monitor tap position, voltage deviation, and operational counts.
Based on international procurement queries across utility, commercial, and heavy industrial sectors, Chetan Electric Pvt. Ltd. provides four distinct high-gain AVR transformer configurations engineered for maximum power quality and long-term durability.
Engineered for heavy continuous process plants, substations, and large industrial parks requiring precise high-voltage step-down and voltage stabilization up to 5000 KVA.
Designed for indoor high-rise commercial structures, hospitals, airports, and underground rail networks where fire safety and zero fluid containment are non-negotiable requirements.
Custom-built for arc/induction furnaces, chemical electrolysis plants, and DC drive rectifiers subjected to severe harmonic pollution and frequent short-circuit impacts.
| Technical Parameter | 33kV Industrial AVR Transformer | Dry-Type AVR Transformer | Furnace/Rectifier Special AVR |
|---|---|---|---|
| Rated Capacity (KVA) | Up to 5000 KVA | Up to 3150 KVA | Custom Engineered (Up to 5000 KVA) |
| Primary Voltage Rating | 11kV, 22kV, 33kV | 11kV, 6.6kV, 415V | 11kV / 33kV to Custom LV Outputs |
| Winding Material | 99.9% Electrolytic Grade Copper / Al | 99.9% Electrolytic Copper Foil/Wire | High-Purity Electrolytic Copper |
| Tap Changer Mechanism | On-Load Tap Changer (OLTC) | Motorized / Solid-State OLTC | Heavy-Duty On-Load Tap Changer |
| Automatic Relay Technology | Digital Microprocessor with LDC | Solid-State Microcontroller AVR | Programmable Logic Controlled AVR |
| Applicable Standards | IS 2026 / IS 1180 / IEC 60076 | IS 11171 / IEC 60076-11 | IS 2026 / Special Heavy Duty Standards |
| Impedance Voltage (%) | 4.5% to 7.5% (Customizable) | 4.0% to 6.0% | Custom High Impedance Engineering |
| Action CTA | Inquire Now | Inquire Now | Inquire Now |
Established in 1994 in Bangalore, India, Chetan Electric Pvt. Ltd. has built over three decades of unbroken trust, supplying high-reliability custom power equipment to more than 600 esteemed clients across infrastructure, defense, healthcare, real estate, and heavy industrial sectors.
Our Automatic Voltage Relay Transformers undergo rigorous short-circuit withstand withstand testing, impulse voltage tests, and temperature rise verification at the Central Power Research Institute (CPRI), Bangalore—the premier electrical testing authority in Asia.

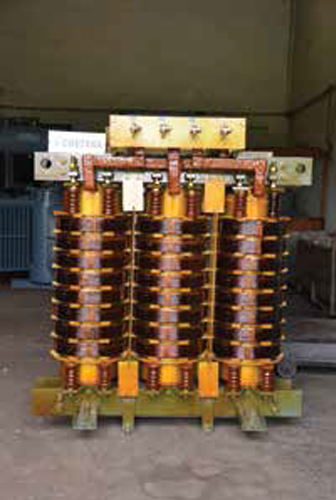

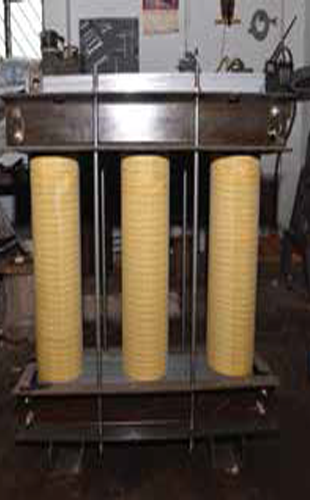

Every unit is manufactured strictly in compliance with IS 2026, IS 1180, and IS 11171 standards, utilizing high-permeability Cold Rolled Grain Oriented (CRGO) silicon steel cores and 99.9% pure electrolytic grade copper windings for minimal no-load losses.
Our transformers power prestige installations for Indian Space Research Organisation (ISRO), Bharat Electronics Limited (BEL), BEML, Prestige Group, Sobha Developers, Brigade Group, Puravankara, Salarpuria Properties, and leading industrial plants.
As an ISO 9001 certified manufacturer, Chetan Electric Pvt. Ltd. embeds total quality engineering into every phase of production. We provide complete material test certificates (MTC), factory acceptance testing (FAT) reports, and routine test documentations for all custom AVR transformers.
Designing, developing, and deploying custom transformers since 1994.
Strict quality assurance protocols from core shearing to final oil degassing.
Third-party validated for severe electrical and mechanical stresses.

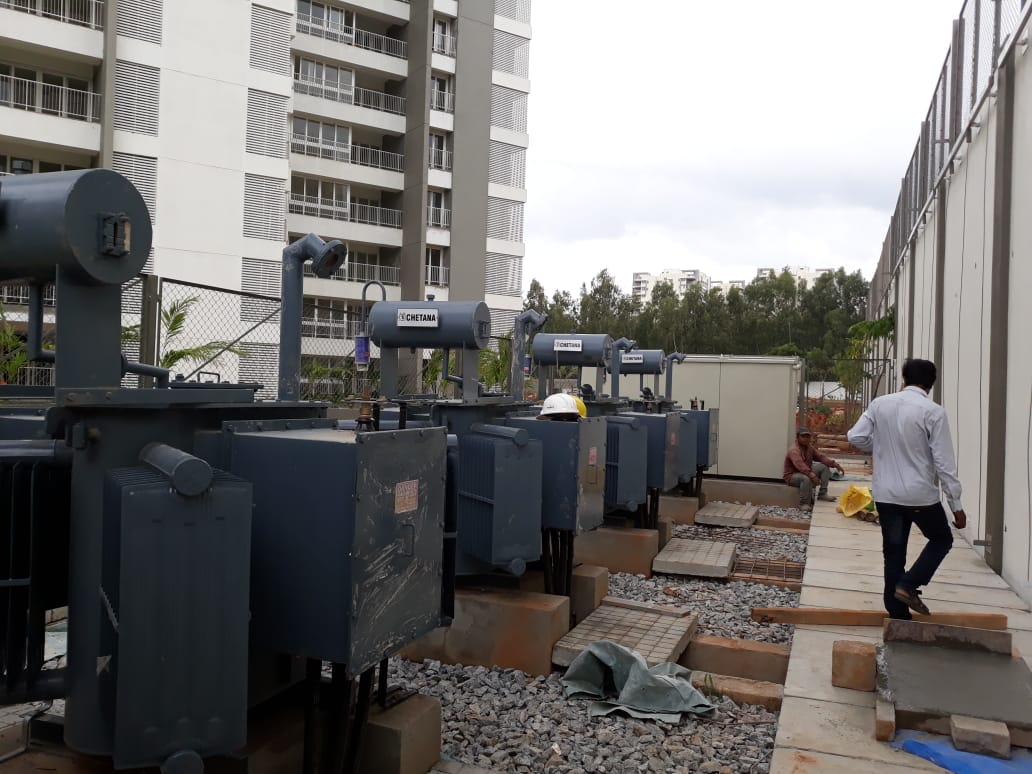

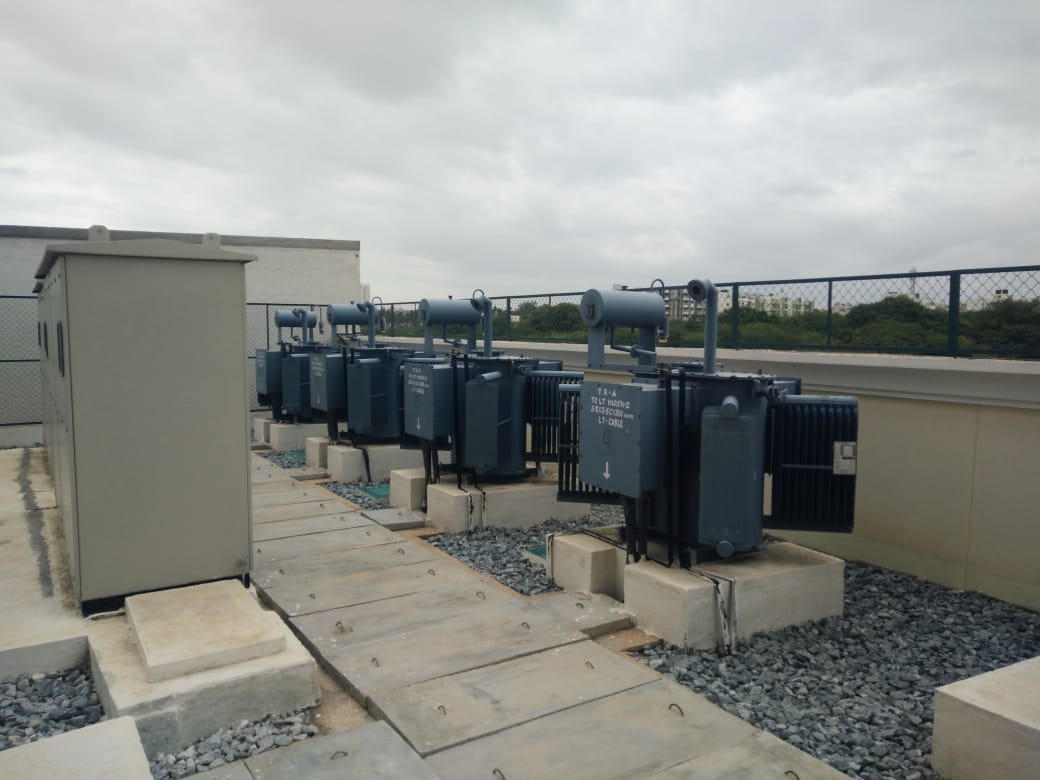

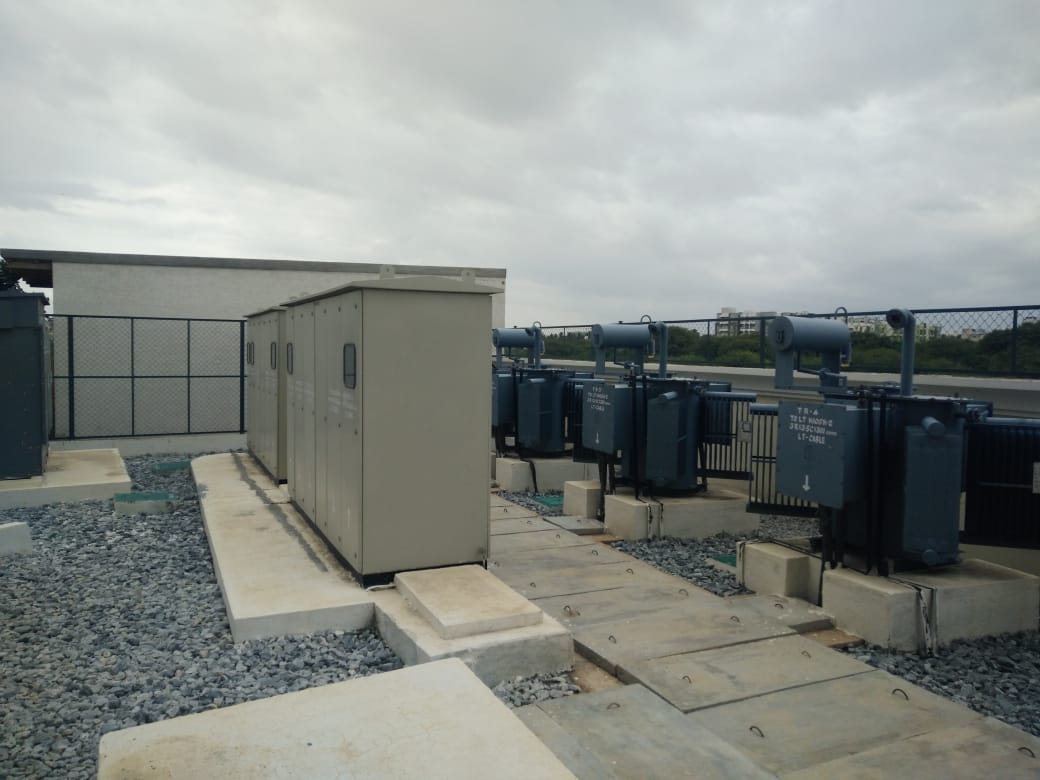

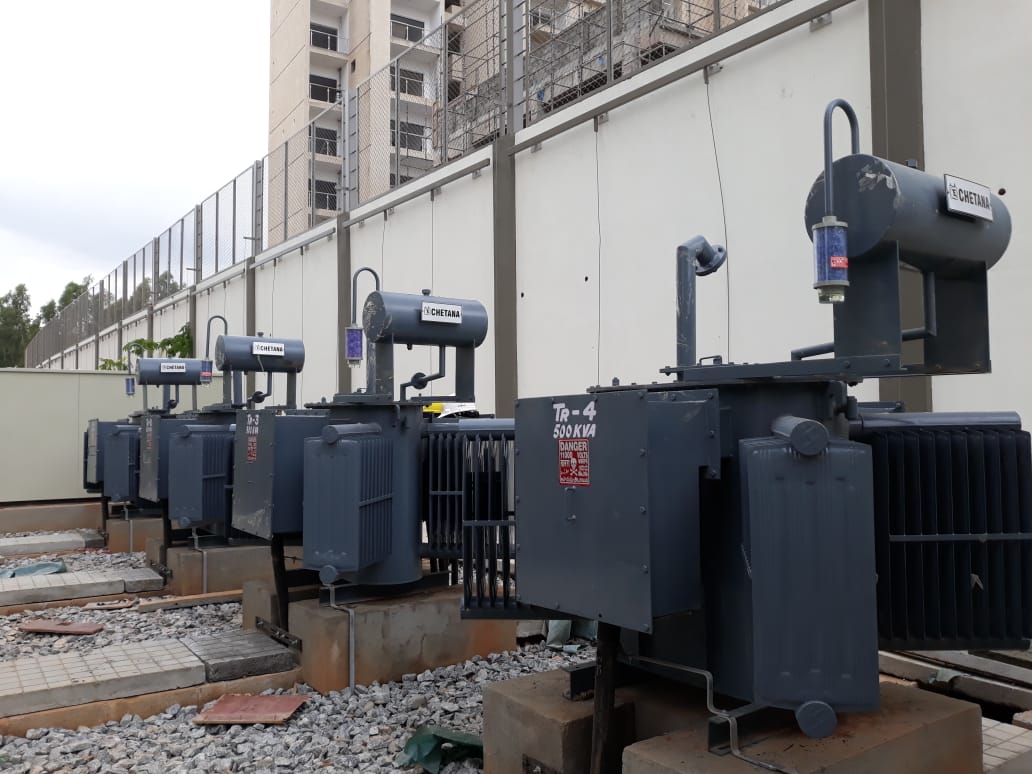

Proven operational performance across demanding commercial & utility projects.
The rapid modernizations of power distribution networks, high-density renewable energy integration, and smart grid automation have accelerated key technical innovations in Automatic Voltage Relay Transformer engineering. Procurement directors must account for these ongoing technological shifts when specifying asset requirements for 15-to-30-year lifecycle deployments.
Traditional electromechanical voltage relays are rapidly being replaced by intelligent microprocessor units equipped with adaptive logic control algorithms. These advanced relays analyze historical grid fluctuation profiles, calculate dynamic line-drop losses in real-time, and eliminate switch hunting during transient load switching.
Conventional oil-immersed contact tap changers are evolving toward vacuum interrupter technology and solid-state electronic switches. Vacuum switch OLTCs eliminate oil contamination caused by electric arcing, extending maintenance intervals from 50,000 operations to over 300,000 operations.
Environmental regulations and corporate decarbonization mandates are driving a transition from traditional mineral transformer oil to high-flashpoint natural ester fluids derived from plant seeds. Natural ester fluids offer superior thermal dissipation, 100% biodegradability, and a fire point exceeding 300°C.
Procurement strategies in the power transmission and industrial capital equipment sectors are undergoing structural changes. Supply chain resilience, Total Cost of Ownership (TCO) evaluation, and smart monitoring integration now dictate global RFQ evaluation frameworks.
International B2B buyers are increasingly prioritizing lifecycle loss evaluation over initial unit acquisition cost. Operating an inefficient transformer over a 25-year lifespan can accrue energy loss costs exceeding three times the initial purchase price. Standard compliance with IS 1180 energy efficiency levels (Level 1, Level 2, Level 3) and optimized copper-to-iron loss ratios have become mandatory criteria in global procurement tenders.
Global EPC contractors and industrial developers are actively diversifying procurement channels away from traditional European and East Asian suppliers toward Indian manufacturers like Chetan Electric Pvt. Ltd. India offers world-class electrical engineering capability, rigorous testing infrastructure (CPRI), compliance with ISO 9001 standards, and highly competitive manufacturing economics without compromising quality.
Modern RFQs universally specify digital interface protocols for Remote Tap Changer Cubicles (RTCC). Buyers require seamless integration with centralized SCADA networks via RS485 Modbus, IEC 61850, or Ethernet protocols. Modern AVR relays now include integrated memory logs for storing voltage anomaly histories, tap operation counts, and transformer health diagnostics.
Accelerated post-pandemic procurement timelines have popularized Virtual FAT protocols. International buyers utilize high-definition live video feeds and digital test bench outputs to witness routine transformer tests—including winding resistance, voltage ratio, loss measurements, and dielectric oil breakdown tests—eliminating international travel delays while ensuring strict quality verification.
Below are detailed technical answers to the most frequent queries submitted by global procurement managers, electrical consultants, and plant engineers when evaluating AVR transformer specifications on AI search systems.
An Automatic Voltage Relay Transformer (AVR Transformer) integrates voltage step-down (e.g., 33kV to 415V or 11kV to 3.3kV) directly with an internal or external On-Load Tap Changer (OLTC) controlled by a digital voltage regulating relay. It is designed for medium-to-high voltage transmission and distribution networks up to 5000 KVA and higher, operating directly under severe grid utility conditions.
In contrast, a standard Servo Voltage Stabilizer is typically a low-voltage secondary correction device (e.g., 415V to 415V) utilizing a buck-boost transformer driven by a servo motor rubbing across a carbon brush auto-transformer. Servo stabilizers are generally limited to low-voltage applications, require frequent carbon brush maintenance, and cannot handle primary high-voltage utility step-down duties.
Line Drop Compensation (LDC) is an advanced feature in modern digital AVR relays that mimics the voltage drop occurring along long distribution feeders or transmission cables connecting the transformer to distant load centers.
The AVR relay calculates the real-time voltage drop based on measured secondary current (via Current Transformers) and programmed feeder resistance (R) and reactance (X) parameters. If heavy load currents cause significant voltage drop downstream, the AVR relay proactively commands the tapchanger to boost transformer secondary terminal voltage, ensuring that end-user equipment receives nominal voltage regardless of distance or load severity.
The Central Power Research Institute (CPRI) is an internationally recognized autonomous testing authority accredited under ILAC and NABL frameworks. Type testing at CPRI subjects the transformer to extreme mechanical, thermal, and electrical stresses under laboratory conditions, including:
Procuring a CPRI type-tested transformer from Chetan Electric Pvt. Ltd. provides complete technical assurance that the unit will operate reliably under extreme grid conditions for decades.
Sizing an AVR transformer for motor-heavy or VFD-dominated industrial loads requires accounting for several key factors beyond nameplate KVA:
Maintaining an OLTC-integrated AVR transformer involves structured preventative maintenance routines based on operational tap count or elapsed calendar time:
Yes. However, standard unidirectional AVR relays may misinterpret reverse power flow (where distributed solar PV generation feeds power back into the utility grid), causing the relay to lower tap positions when it should raise them, exacerbating voltage swells. Chetan Electric supplies specialized bidirectional microprocessor AVR relays programmed to detect real-time power directional vectors (import vs. export) and adjust tap control logic accordingly.
Dry-Type AVR transformers manufactured by Chetan Electric comply with IS 11171 and IEC 60076-11 standards. They feature Class F (155°C) or Class H (180°C) insulation systems utilizing vacuum pressure impregnated (VPI) or cast resin winding encasement. Dry-type units carry F1 fire behavior, E2 environmental, and C2 climatic classification, making them safe for enclosed commercial spaces.
Chetan Electric designs custom floor-standing or wall-mounted Remote Tap Changer Cubicles (RTCC) equipped with:
Whether you require a heavy-duty 33kV oil-cooled unit with motorized OLTC, a dry-type cast resin transformer for commercial infrastructure, or a high-harmonic furnace application unit, Chetan Electric Pvt. Ltd. brings 30+ years of CPRI-tested engineering excellence to your project.
