Technical Whitepaper: Sourcing High-Performance Pad-Mounted Transformers from Top China Factories

As the global energy transition accelerates and urban electrical infrastructure undergoes unprecedented modernization, the demand for compact, tamper-proof, and high-efficiency pad-mounted transformers has surged. Selecting the right manufacturing partner among China top pad transformer factories is no longer merely a transaction of electrical hardware—it is a strategic decision that directly influences grid stability, operational safety, Total Cost of Ownership (TCO), and long-term asset lifetime management.

This comprehensive technical whitepaper delivers deep insights into engineering design standards, material metallurgy, factory qualification criteria, and future technological vectors defining the next decade of medium-voltage distribution infrastructure.

1. Enterprise Strengths & Advanced Factory Manufacturing Capabilities

Leading Chinese pad transformer manufacturers have evolved from high-volume assembly lines into world-class R&D powerhouses. Anchored by rigorous quality management frameworks and state-of-the-art metallurgical processing, premier factories differentiate themselves through technical precision and certified compliance.

2. Structural Anatomy: American Box (Loop/Radial Feed) vs. European Package Substations

Understanding the engineering nuances between American-style pad-mounted transformers and European-style compact substations is crucial when customizing equipment for specific regional grid architectures.

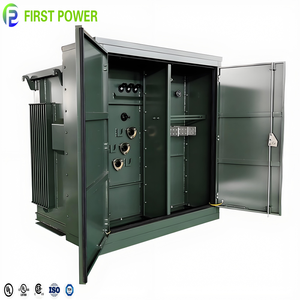

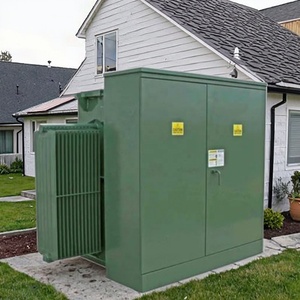

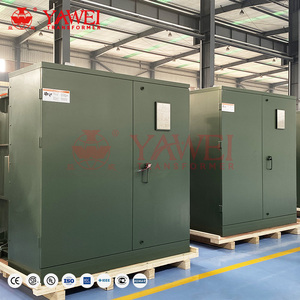

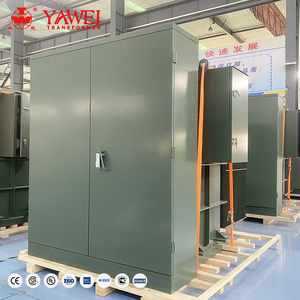

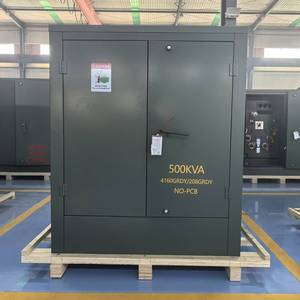

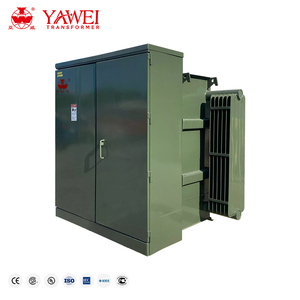

• American Box Pad-Mounted Transformer: Integrates the transformer core/coil assembly, high-voltage bay, and low-voltage bay within a single fluid-filled cabinet structure. Available in Dead-Front (elbow connectors, zero exposed live parts) and Live-Front designs. Features integrated bay-o-net current sensing fuses and current-limiting backup fuses submerged directly in transformer oil.
• European Compact Substation: Separates the dry-type or oil-immersed transformer into a dedicated compartment linked to an external Ring Main Unit (RMU) and low-voltage switchboard enclosure. Typically occupies a larger footprint but provides modular flexibility.

3. Industry & Technology Development Trends (2025–2035)

The manufacturing landscape in top Chinese transformer factories is rapidly evolving, driven by four pivotal industry transformations:

A. Rapid Transition to Amorphous Alloy & High-Permeability Grain-Oriented Silicon Steel

Energy efficiency regulations such as DOE 2016 in the United States and EU Tier 2 Ecodesign directives mandate drastically reduced no-load (core) and load losses. Leading factories are replacing standard silicon steel with Amorphous Alloy Cores, which reduce no-load losses by up to 70-80% compared to traditional cold-rolled grain-oriented (CRGO) steel cores, drastically shrinking lifecycle carbon footprints.

B. Smart Grid Integration with IoT Dissolved Gas Analysis (DGA) & Thermal Sensors

Modern pad-mounted transformers are transforming from passive assets into intelligent nodes within Smart Grids. Premier Chinese manufacturers integrate micro-sensors for real-time tracking of top-oil temperature, winding temperature simulation, tank pressure, liquid level, and hydrogen gas evolution. Fiber-optic temperature sensors embedded directly within windings feed telemetry data to remote SCADA networks via IEC 61850 protocols.

C. High-Fire-Point Biodegradable Dielectric Esters (FR3)

Replacing traditional mineral oil with natural ester fluids derived from renewable plant oils offers critical technical advantages:

• Fire Safety: Fire point >300°C (K-class fluid classification), eliminating the need for complex fire walls or deluge spray systems in densely populated commercial centers.
• Insulation Longevity: Natural esters absorb moisture released by paper insulation, extending cellulose paper thermal insulation life by up to 5-8 times compared to mineral oil.
• Environmental Stewardship: Readily biodegradable in water and soil within 28 days, neutralizing environmental contamination risks near waterways or protected ecosystems.

4. Strategic Future Procurement Trends for Global B2B Buyers

When evaluating global sourcing strategies from China's top transformer clusters (such as Zhejiang, Jiangsu, Guangdong, and Shandong provinces), procurement leaders must adapt to key macro-trends:

1. Modular Customization (OEM/ODM Flexibility): Top-tier factories offer fully customized primary voltage taps (e.g., ±2x2.5% off-circuit tap changers or on-load tap changers), dual voltage ratings (e.g., 13.8kV × 24.94kV switching), specialized grounding transformers (Zig-zag winding), and specialized low-profile designs for solar PV inverters and battery energy storage system (BESS) step-up applications.

2. Advanced Anti-Corrosion Surface Treatment for Harsh Environments: For coastal, desert, or industrial chemical installations, top factories employ multi-stage automated powder coating, hot-dip galvanizing, or marine-grade C5-M epoxy painting systems tested under 3,000-hour continuous salt spray exposure (ASTM B117 standards).

3. Decoupled Risk Management via Comprehensive Factory Acceptance Testing (FAT): International buyers are increasingly mandating remote digital FAT protocols, where high-voltage dielectric tests (routine tests per IEC 60076-1 / IEEE C57.12.00, power frequency withstand voltage, lightning impulse voltage testing up to 150kV+) are audited in real-time via encrypted high-definition streaming channels.
