In modern industrial automation, Variable Frequency Drives (VFDs) and Variable Speed Drives (VSDs) are indispensable for controlling AC motor speeds, enhancing energy efficiency, and optimizing dynamic torque. However, the high-speed Pulse Width Modulation (PWM) switching employed by insulated-gate bipolar transistors (IGBTs) creates severe power quality challenges. As a premier China wholesale load reactor manufacturer & supplier, our engineering team manufactures high-impedance, electromagnetic inductive components designed to mitigate harmonic distortion, attenuate high voltage spikes ($dv/dt$), and safeguard long motor lead installations.
Dampens standing wave peak voltages generated across long cable runs (>50 meters), preventing premature stator insulation breakdown in AC motors.
Reduces fast voltage rise times ($dv/dt$) from fast-switching IGBTs, protecting motor windings from micro-arcing and thermal distress per NEMA MG1 Part 31.
Suppresses Total Harmonic Current Distortion (THDi), smoothing switching ripples and extending the operational lifespan of VFD power electronics.

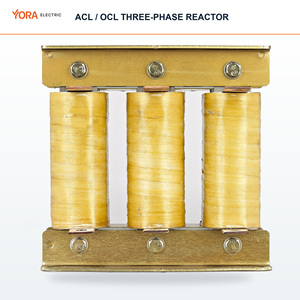

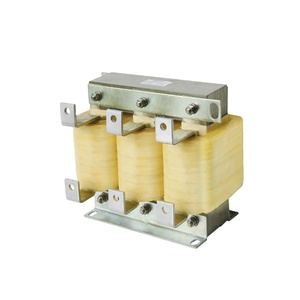

Industrial electrical engineers often evaluate whether to specify an Input (Line) Reactor or an Output (Load) Reactor. While both units utilize high-permeability magnetic cores wound with high-grade copper or aluminum conductors, their operational positions within the electrical architecture serve radically different protective mandates:
| Technical Dimension | AC Line Reactor (Input Side) | AC Load Reactor (Output Side) | dv/dt Filter (Output Side) |
|---|---|---|---|
| Electrical Position | Between Mains Power Utility & VFD Input | Between VFD Output Terminals & Motor | Directly at VFD Output Terminals |
| Primary Objective | Attenuates line transients & grid THDi harmonics | Suppresses motor dv/dt & cable capacitance currents | Clamps peak voltage spikes below 1000V/μs |
| Cable Distance Threshold | N/A (Grid Side) | Effective for runs 30m to 150m (100ft – 500ft) | Critical for runs exceeding 150m to 300m |
| Thermal Rating | Class H ($180^\circ\text{C}$) / Class R ($220^\circ\text{C}$) | Class H ($180^\circ\text{C}$) with forced air/oil option | Class H ($180^\circ\text{C}$) with tuned RC network |
| Standard Compliance | IEEE 519, IEC 60076-6 | NEMA MG1 Part 31, IEC 60076-6 | IEC 61800-3, IEEE C57.110 |
When the distance between a PWM-driven VFD and an AC induction motor exceeds 30 meters (approx. 100 feet), the distributed cable capacitance interacts with the high-frequency switching frequency ($2\text{ kHz} - 16\text{ kHz}$) of the IGBTs. This causes voltage amplification due to reflected waves, producing peak voltage spikes up to twice the DC bus voltage ($2 \times V_{dc}$). Installing a 3% or 5% impedance China Wholesale Load Reactor dampens these pulses, protecting motor insulation from breakdown.
The global demand for industrial load reactors, harmonic suppression inductors, and specialized reactor vessels is experiencing a profound paradigm shift driven by industrial automation, renewable energy integration, and strict energy efficiency mandates across North America, Europe, and Asia-Pacific. B2B procurement managers and EPC project engineers must align their procurement strategies with several critical technological trends:
Next-generation VFDs utilize Silicon Carbide (SiC) and Gallium Nitride (GaN) power switches capable of ultra-fast switching speeds exceeding 50 kHz. Traditional silicon steel core reactors suffer from excessive eddy current and hysteresis losses at these higher frequencies. Leading China wholesale suppliers are transitioning to Nanocrystalline and Amorphous core formulations, reducing high-frequency core losses by over 65% while maintaining magnetic permeability.
Modern heavy-industry facilities demand predictive maintenance over reactive repair. Advanced load reactors now feature integrated fiber-optic thermal probes, Rogowski coil current sensors, and dynamic vibration sensors linked to Modbus/RS485 or PROFINET interfaces. This enables plant operators to monitor real-time temperature rise, magnetic flux saturation, and harmonic loading via cloud dashboards.

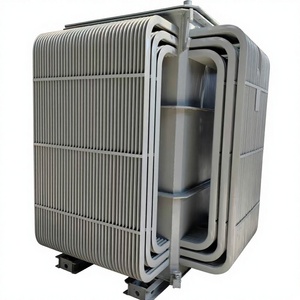

For high-power utility installations, renewable microgrids, and chemical reaction pilot plants, dry-type air-cooled reactors can become physically unwieldy. The adoption of Oil-Immersed Self-Cooling (ONAN/ONAF) and synthetic ester liquid-cooled load reactors up to 1000kVA provides superior thermal dissipation, IP65+ outdoor environmental protection, and reduced physical footprint.
Procurement directors increasingly prefer turn-key manufacturers capable of supplying both power equipment (such as 3-phase 380V/480V/690V line/load reactors) and chemical reaction hardware (such as UL-certificated double-layer jacketed glass and stainless steel reactors). Having a single OEM partner streamlines quality audit compliance and logistical complexity.
Backed by 30+ years of manufacturing legacy, rigorous CPRI testing, and comprehensive UL/CE certifications, our production facility delivers world-class reliability for global industrial buyers.
All reactor designs undergo rigorous routine and type testing including temperature rise tests, short-circuit withstand tests, impulse voltage tests, and acoustic noise level verification per IEC 60076-6 and IS 2026 standards.
Our coils utilize solvent-free Class H ($180^\circ\text{C}$) or Class R ($220^\circ\text{C}$) epoxy resin via Vacuum Pressure Impregnation (VPI), ensuring superior mechanical strength, humidity resistance, and whisper-quiet operation (<60 dBA).
From custom reactance values ($mH$), rated currents (5A to 2500A), multi-gap core configurations, to specialized IP20/IP54/IP65 NEMA enclosures, our engineering team tailors solutions to match exact client specifications.
