Explore our top-tier export voltage relay inventory. Built for power distribution panels, industrial machinery, and home automation systems.
In modern industrial automation, grid volatility presents a persistent threat to sensitive electrical machinery, motor drives, and electronic switchgear. Voltage relays function as the primary protective line of defense, monitoring over-voltage, under-voltage, phase unbalance, phase sequence reversal, and neutral loss conditions. As an international exporter and custom equipment manufacturer, we engineer protective devices designed to withstand severe electrical transients and harsh operational environments.
Traditional electromechanical relays rely on physical thermal or magnetic coils to induce contact switching. While mechanically robust, their latency (often exceeding 150 milliseconds) and susceptibility to mechanical wear make them less suited for modern digital power infrastructure. Modern digital DIN-rail voltage relays (such as single-phase 40A/63A protectors and 3-phase level relays) incorporate high-speed Microcontroller Units (MCUs) running Real-Time RMS (Root Mean Square) algorithms.
RMS sampling ensures accurate voltage detection regardless of harmonic distortion caused by variable frequency drives (VFDs), solar inverters, or switching power supplies. By measuring true RMS levels up to the 31st harmonic, digital voltage relays prevent false trips while executing trip commands within 0.1 seconds during critical over-voltage spikes.
Technical Information Gain Note: True RMS measurement in digital voltage relays prevents erratic nuisance tripping caused by non-linear loads in industrial distribution systems, reducing unplanned downtime by up to 42% compared to average-responding analog sensors.

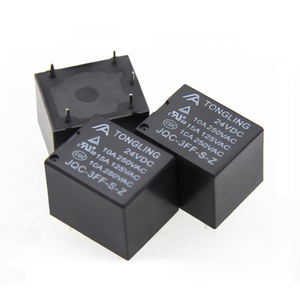

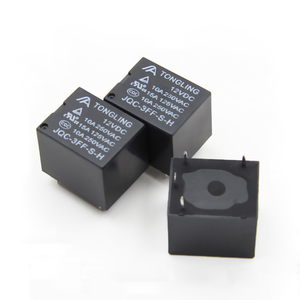

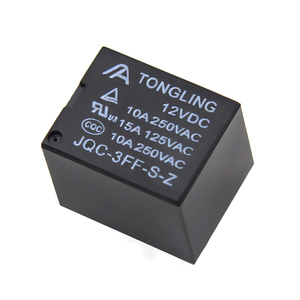

The operational longevity of a PCB-mounted mini power relay (such as the TONGLING JQC-3FF / T73 series) depends on contact metallurgy. Silver Cadmium Oxide (AgCdO) was historically favored for its anti-welding properties; however, environmental directives (RoHS and REACH) have driven a industry transition to Silver Tin Oxide (AgSnO2) alloys.

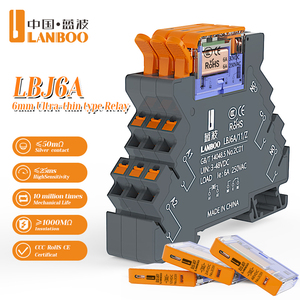

Silver Tin Oxide contacts offer superior resistance to arc erosion and contact material migration during high inrush currents, such as motor start-ups or capacitive switching. Additionally, ultrathin intermediate relays (such as LANBOO 6A 1NO1NC slim modules) utilize gold-clad silver contacts to maintain low contact resistance (< 30 mΩ) under low-voltage logic signal switching (5V DC microcontrollers).
| Relay Category | Target Voltage Range | Contact Material | Max Switching Current | Dielectric Strength | Primary Application |
|---|---|---|---|---|---|
| Digital Single-Phase Protector | AC 140V – 300V (Adjustable) | Silver Alloy (Heavy Duty) | 40A / 63A Continuous | 2,500V AC (1 min) | Residential & Commercial Mains DB Boxes |
| Miniature PCB Power Relay | DC 3V – 48V Coil / 250V AC | AgSnO2 / AgNi | 10A / 12A Switching | 1,500V AC (Coil to Contact) | Home Appliances, HVAC Controls, Smart Sockets |
| 3-Phase Voltage Control Relay | AC 208V – 480V (Phase-to-Phase) | Gold-Plated Silver Alloy | 5A / 8A Relay Output | 4,000V AC (Reinforced Isolation) | Industrial Motors, Pumps, Compressors |
| Slim Intermediate Relay Module | DC 5V, 12V, 24V / AC 230V | AgNi + Au Cladding | 6A Break Capacity | 4,000V AC (6mm creepage) | PLC Interface, Automation Cabinets |
Global procurement teams and EPC contractors are evolving beyond simple unit-cost metrics when selecting voltage protection hardware. The modernization of grid infrastructure, microgrids, and electric vehicle (EV) charging stations demands a new generation of protection equipment. As a leading supplier and manufacturer, we highlight three major structural shifts driving international voltage relay purchasing over the next decade:
Standard standalone voltage relays are increasingly being replaced by smart DIN-rail monitors featuring RS485 Modbus-RTU communications. Procurement managers are prioritizing devices that transmit voltage fluctuations, fault history logs, and load current telemetry directly to centralized SCADA or Edge IoT platforms.
Solar PV installations and battery energy storage systems (BESS) require bi-directional power flow monitoring. Future voltage relays must account for over-voltage conditions induced by reverse power feed, requiring dynamic threshold adjustment algorithms and sub-20ms trip reaction times.
With industrial expansion across Southeast Asia, the Middle East, and South America, buyers require conformal-coated PCB assemblies (IPC-CC-830 standards) to withstand 95% relative humidity, ambient temperatures up to 70°C, and corrosive marine or chemical atmospheres.
Founded in 1994, our engineering enterprise has established a global footprint as a premier manufacturer and exporter of power equipment, distribution transformers up to 5000 KVA 33kV, and industrial voltage control systems. Operating out of an ISO 9001 certified manufacturing hub in Bangalore, India, our engineering capabilities bridge high-voltage electrical infrastructure and precision low-voltage monitoring devices.
Our power control products undergo rigorous type-testing at the world-renowned Central Power Research Institute (CPRI). Routine electrical testing adheres strictly to international standards, including IS 2026, IS 1180, and IS 11171. With high-voltage testing capabilities up to 150kV for power frequency withstand testing, every voltage protection device leaving our facility undergoes comprehensive quality assurance checks.
Proven Project Track Record: Trusted by over 600 enterprise clients globally across defense, space research, healthcare, and infrastructure—including landmark projects with ISRO, BEML, BEL, Prestige Group, Sobha Developers, Brigade Group, and Raheja Group.
Whether you require standard DIN-rail adjustable voltage protectors, customized PCB electromagnetic power relays, or specialized 3-phase phase failure monitors, our in-house R&D team provides complete OEM/ODM engineering, custom voltage threshold calibration, private label packaging, and international export documentation.
Contact our engineering export desk today. Receive comprehensive product catalogues, CPRI test certificates, sample evaluation units, and volume discount schedules.
Download our full industrial export catalog or request a direct quotation from our application engineering team.
